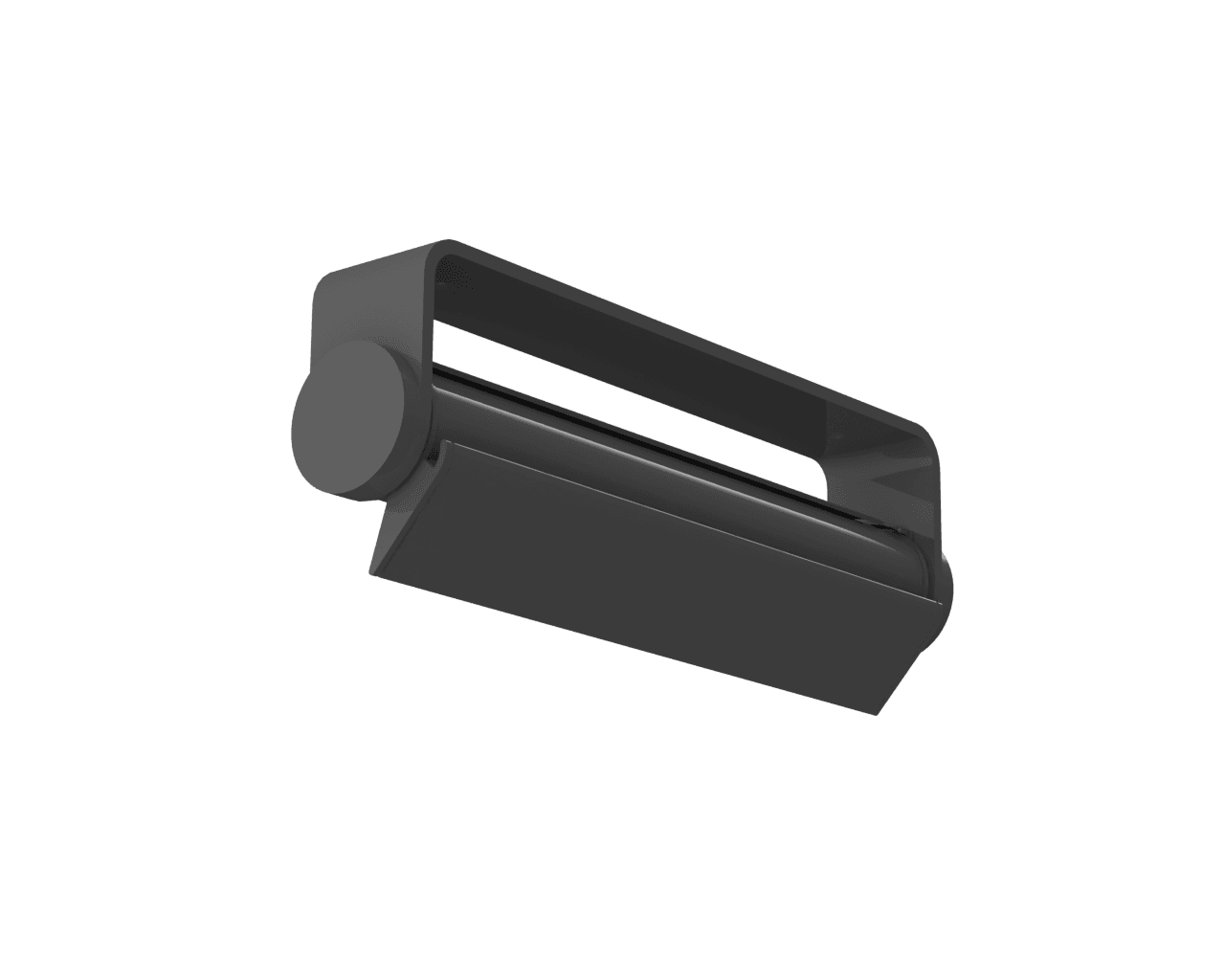

L305M is specifically configured for mounting on tambient AMA monitor arm support assemblies and tambient AMC Humanscale M/Flex adapters. Together, these provide an integrated personal ergonomic workstation unit that delivers exceptional lighting and support for one, two or three video display terminals.

The luminaire features a wide-distribution uplight for indirect room illumination (ambient light) and a 24” linear downlight for broad worksurface illumination. Suitable for use in both open office areas and private offices.

L305M is available with 42 or 84 mid-power uplight LEDs (1,784 or 3,568 lumens) to accommodate a variety of ceiling heights, ceiling finishes, energy codes and workstation densities. Precision engineered 2-stage uplight optics and 3 stage downlight optics deliver low-glare lighting for both seated and standing individuals.

Power connection is cord and plug to a standard grounded 120V power receptacle. (Contact factory for international power cords.)

A pushbutton on the luminaire provides for personal ON/OFF and dimming control of the task light. A standard automatic shut-OFF feature provides a special exemption for some or all of the task light power under most energy codes.

The uplight is controlled separately. A second pushbutton on the luminaire is optional for controlling the uplight in private offices. In open office areas, the uplights of multiple L305M, L305 and L306 luminaires operate in unison to illuminate the entire space and connect to any 3rd-party lighting control system for occupancy, daylight, demand, and manual ON/OFF and dimming response.

On-board wireless communication and the tambient CDT-CA-03 Wireless Signal Transmitter integrate with any 0-10V dim-to-OFF 3rd-party control system or device and eliminate wiring between the lighting control system/devices and the luminaires for uplight control. Initial commissioning and future reconfigurations are facilitated using the free worldwide Casambi mobile app. (Contact factory for other wireless protocols.) Hardwired power and control options are available for mission-critical installations.

Available in Flat Ivory White, Vista Flat Black and Semigloss Platinum finish. (Finishes match AMA monitor arm mounting kits.)

L305M is perfectly suited for sit-stand desks, single-sided bench workstations, raise-lower bench installations and private offices.
